All Geared Radial Drill

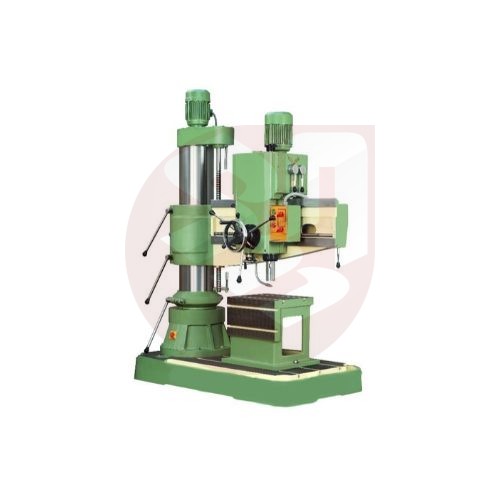

“SHREE” Brand All Geared Radial Drill
Specifications	AGRD50	AGRD65	AGRD75
Capacity
Max. Drilling Capacity in Steel (M.S.)	50 mm	65 mm	75 mm
Max. Drilling Capacity in Cast – Iron (C.I.)	56 mm	70 mm	80 mm
Tapping in Steel	42 mm	50 mm	58 mm
Spindle
Spindle Travel	250 mm	300 mm	330 mm
Spindle Taper	MT4	MT5	MT5
No. of Spindle Speed	9	9	9
Spindle Speed Range (RPM)	50 to 805	50 to 805	50 to 805
Auto Power Feed	0.115	0.115	0.115
Optional Feed 6	0.13-1.10	0.13-1.10	0.13-1.10
Working Range
Pillar Diameter	280 mm	330 mm	355 mm
Max./ Min. Distance Spindle Center to Pillar Centre	1325/615 mm	1700/700 mm	1800/800 mm
Horizontal Movement of Drilling Head	710 mm	1016 mm	1420 mm
Max./ Min. Distance Spindle Nose to Base Plate	1080/480 mm	1120/460 mm	1400/560 mm
Vertical Movement of Radial Arm	600 mm	660 mm	680 mm
Working Surface of Box-Table	560 x 460 mm	560 x 460 mm	560 x 460 mm
Height of Working Table	400 mm	400 mm	400 mm
Base size (Machined Area)	1020 x 800 mm	1400 x 850 mm	1500 x 950 mm
Height of the Base Plate	190 mm	210 mm	210 mm
Electricals
Drilling Head Motor (HP / RPM)	3/1440	5/1440	5/1440
Elevating Motor (HP / RPM)	2/1440	3/1440	3/1440
Machine Dimension & Weight (Approx.)
Length x Width	1680 x 930 mm	2050 x 990 mm	2100 x 990 mm
Height	2360 mm	2440 mm	2515 mm
Weight	2600 kg	3150 kg	3550 kg

Standard Accessories:

Optional Accessories:

As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
