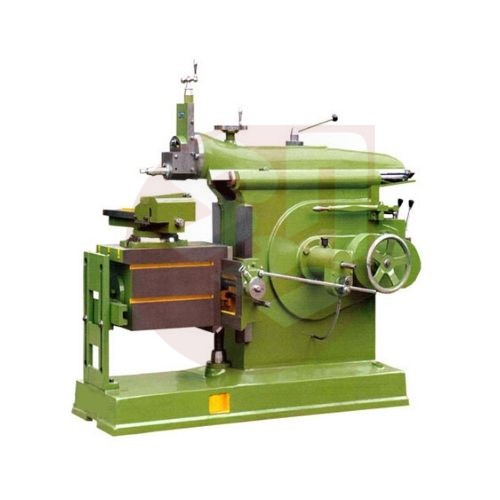

All Geared Shapping Machine
| Specification | AGSM24 | AGSM36 | ||||
| Capacity | ||||||
| Stroke Capacity (Inch / mm) | 24” / 600 | 36” / 900 | ||||
| Length of Ram | 1270 mm | 1727mm | ||||
| L × W of Ram Bearing | 838 × 292 mm | 1143 × 336 mm | ||||
| Max. & Min. Distance From Table to Ram | 457 & 76 mm | 508 & 102 mm | ||||
| Table | ||||||
| Working Surface of Table | 610 × 356 mm | 914 × 432 mm | ||||
| Max. Table Travel Horizontal | 610 mm | 914 mm | ||||
| Max. Table Travel Vertical | 381 mm | 508 mm | ||||
| Ang. Movement of Table | ± 60 Degree | ± 60 Degree | ||||
| Length & Width of Base | 1626 × 585 mm | 2082 × 711 mm | ||||
| Tool Head | ||||||
| Max. Vertical Travel of Tool Slide | 146 mm | 228 mm | ||||
| Max. Swivel of Tool Head | ± 60 Degree | ± 60 Degree | ||||
| Speed & Feed | ||||||
| Range of Ram Speed in Cone Pulley | 4 | 3 | ||||
| Table Feed per Stroke of Ram | 0.229 mm | 0.229 mm | ||||
| Electrical | ||||||
| Electric Motor (HP / RPM) | 3 / 1440 | 5 / 1440 | ||||
| Machine Dimension & Weight (Approx.) | ||||||
| Length x Width (mm) | 1090 x 1980 mm | 1400 x 2350 mm | ||||
| Height | 1600 mm | 1800 mm | ||||
Standard Accessories:
- Motor pulley
- Counter v-belt
- Lubrication system
- Shaping vice
- Handle
Optional Accessories:
- Electric motor
- R/F switch
- Motor v-belt set
As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
