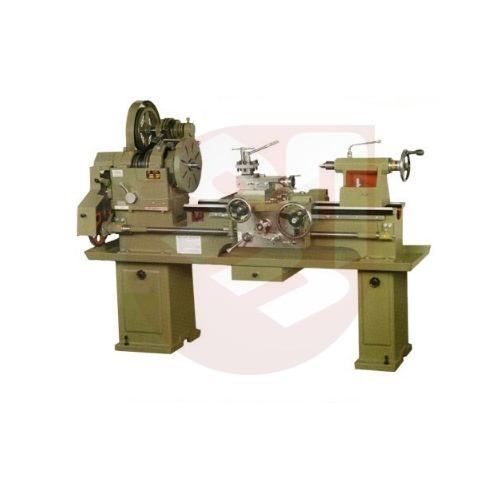

Cone Pulley Medium Duty Lathe Machine
| Model No. ( Series ) |
CPMD 1 ( A / B ) |
CPMD 2 ( A / B ) |
CPMD 3 ( A / B ) |
CPMD 4 ( A / B ) |
| Length of Bed | 4′ – 6″ ( 1370 mm ) |
5′ – 3″ ( 1600 mm ) |
6′ – 0″ ( 1825 mm ) |
7′ – 0″ ( 2130 mm ) |
| Admit Between Centre (Approx.) | 400 mm | 650 mm | 850 mm | 1200 mm |
| Specifications | Series A | Series B | ||||
| Bed | ||||||
| Width of Bed | 279 mm | |||||
| Length of Gap | 110 mm | |||||
| Length of Gap In Front of Face Plate | 125 mm | |||||
| Capacity | ||||||
| Height of Centre | 215 mm | 254 mm | ||||
| Swing Over Bed | 425 mm | 500 mm | ||||
| Swing Over Cross Slide | 240 mm | 320 mm | ||||
| Swing In Gap | 620 mm | 700 mm | ||||
| Movement of Cross Slide | 215 mm | 250 mm | ||||
| Size of Tool Post
(Tool post, Carriage, Cross & Compound Slide) |
100 mm | 120 mm | ||||
| Movement of Compound Slide | 150 mm | |||||
| Swing of Compound Slide | ± 75 Degree | |||||
| Main Spindle | ||||||
| Type of Spindle | Threaded | |||||
| Thread In Spindle | 6 TPI – 76.2 mm | 6 TPI – 104.7 mm | ||||
| Spindle Bore | 52 mm | 78 mm | ||||
| Spindle Adapter Morse Taper | MT 4 | MT 4 | ||||
| Spindle Drive(V – Belt) | B – 48 (Nos. 2) | B – 50 (Nos. 2) | ||||
| Spindle Bearing Front(Tapper Roller Bearing) | 32214 | 32220 | ||||
| Spindle Bearing Rear(Tapper Roller Bearing) | 32213 | 32219 | ||||
| No. of Spindle Speed | 6 | |||||
| Spindle Speed Range (RPM) | 40 to 550 | |||||
| Tail Stock | ||||||
| Spindle Diameter | 50.8 mm | |||||
| Morse Taper | MT – 4 | |||||
| Spindle Travel | 150 mm | |||||
| Screw & Range of Thread | ||||||
| Diameter & Pinch of Lead Screw | 31.75 mm x 4 TPI | |||||
| No. of Metric Thread / Range | 21 / 0.5 to 7 mm | 13 / 1 to 6 mm | ||||
| No. of Inch Thread / Range | 29 / 4 to 48 TPI | 19 / 2 to 24 TPI | ||||
| Electricals | ||||||
| Electric Motor (HP / RPM) | 2 / 1440 | |||||
| Motor Belt(V – Belt) | B – 62 (Nos. 2) | |||||
| Machine Dimension & Weight (Approx.) | ||||
| For Model | CPMD1 | CPMD2 | CPMD3 | CPMD4 |
| Length x Width (mm) – Series A & B | 1650 x 780 | 1880 x 780 | 2110 x 780 | 2340 x 780 |
| Height – Series A | 1350 mm | |||
| Height – Series B | 1400 mm | |||
| Weight – Series A | 600 kg | 650 kg | 700 kg | 750 kg |
| Weight – Series B | 650 kg | 700 kg | 750 kg | 800 kg |
Standard Accessories:
- Flame hardened bed ways
- Chuck plate Nos. 1
- Centre adapter Nos. 1
- Dead centre Nos. 2
- Tool post spanner Nos. 1
- Motor pulley Nos. 1
- Thread dial indicator Nos. 1
- Change gear set
- Chip tray
- Chip protecting Leather
Optional Accessories:
- Face plate
- Carrier plate
- Steady rest
- Follow rest
- Rear Tool post
- Tapper turning attachment
- Coolant pump with stand, tank, nozzle & pipe
- Machine lamp
- Splash guard
- Quick change tool post
- Single screw full norton gear box
- Double screw full norton gear box
- 3 speed gear box
- 5 speed gear box (For Heavy duty lathe machine)
- Key way vice
- Motorized key way cutting attachment with Self centering chuck, Electric motor, R/F switch & Motor V-Belt (For Heavy duty lathe machine)
- Toolpost grinder with Elect. motor & Internal attachment
- 3 jaw self centering chuck
- 4 jaw self centering chuck
- 4 jaw independent chuck
- Extra chuck plate
- Electric motor
- R/F switch with Motor v-belt set
As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
