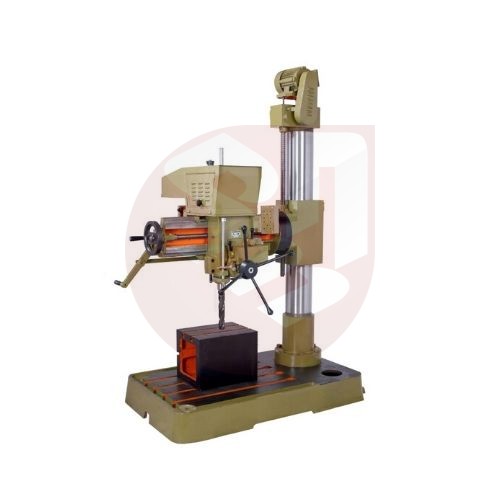

“SHREE” Brand Cone Pulley Radial Drill Auto Feed
Specification CPRD40A
Capacity
Drilling capacity 40 mm
Spindle
Spindle Travel 215 mm
Spindle Tapper MT4
No. of Spindle Speed 8
Spindle Speed Range (RPM) 70 to 2000
Auto Feed Speed 0.04 / 0.08
Working Range
Pillar Diameter 170 mm
Pillar Length 1490 mm
Distance from spindle centre to pillar surface (max) 790 mm
Spindle nose to table distance 705 mm
Distance from spindle nose to base distance 995 mm
Working Surface of Box-Table 290 x 375 mm
Height of Working Table 290 mm
Base size (Machined Area) 735 x 1240 mm
Overall Base Size 745 x 1260 mm
Overall height with pulley guard 1960 mm
Motor Belt (V-Belt) B – 45 & A – 24
Electricals
Drilling Head Motor (HP / RPM) 1.5 / 1440
Elevator Motor (HP / RPM) 0.5 / 1440
Machine Dimension & Weight (Approx.)
Length x Width 1300 x 940 mm
Height 2100 mm
Weight 800 kg



Standard Accessories:

  • Motor pulley
  • Drill drift
  • Working table
  • Auto feed attachment
  • Built in coolant tank

Optional Accessories:

  • Drill vice
  • Drill chuck with Arbour
  • Coolant pump with Stand, Nozzle & Pipe
  • Machine lamp
  • Drilling head
  • Elevating Electric motor
  • R/F Switch with Motor v-belt set

As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
