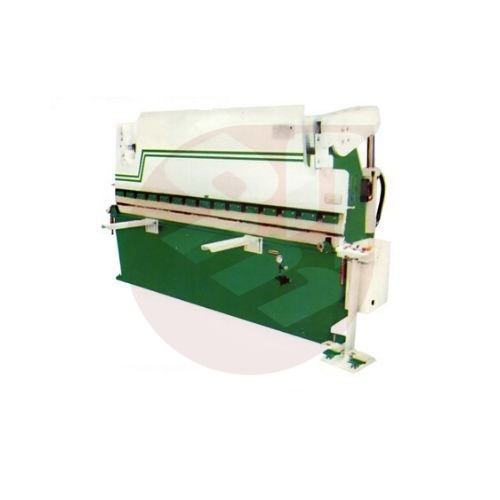

Hydraulic Press Brake

Hydraulic Press Brake

Category:
Specifications and Accessories
Send Inquiry

“SHREE” Brand Hydraulic Press Brake
Model Tonnage

Capacity

 Table
Length(mm)		 BendingCapacity
(In M.S. UTS – MM)
450 kg/mm2		 Table
Width(mm)		 Clear
Pass(mm)

Throat Depth

(mm)

 Ram
Stroke(mm)		 Open
Height(mm)

Elect.

Motor

(HP)



 Ram

Speed



 Machine Dimension

( L x W x H )Approx.

 Weight

(Kg.)(Approx.)
HPB152 20 1525 1525×2 1250×3 150 1050 200 100 250 3 35-9-60 1700x1050x1900 1800
HPB202 30 2030 2030×2 1525×3 150 1550 200 100 250 3 30-9-53 2200x1150x1900 2200
HPB252 40 2540 2540×2 2030×3 150 2050 200 100 250 5 35-9-55 2700x1150x1900 2600
HPB312 50 3100 3100×2 2540×3 180 2050 200 100 250 5 30-7-55 3350x1200x2030 3600
HPB154 50 1525 1525×4 1250×5 180 2550 200 100 250 5 30-7-55 1700x1050x1900 2300
HPB204 60 2030 2030×4 1525×5 180 1550 200 100 330 5 25-6-50 2200x1150x1900 3500
HPB254 80 2540 2540×4 2030×5 200 2050 250 150 330 7.5 37-6-41 2700x1150x2030 4200
HPB314 100 3100 3100×4 2540×5 200 2550 250 150 330 10 40-5-40 3350x1200x2030 5300
HPB404 125 4000 4000×4 3100×5 200 3100 250 150 330 10 41-6-41 4200x1650x2540 7500
HPB156 80 1525 1525×6 1250×8 200 1050 250 100 330 7.5 37-6-41 1750x1550x2000 2800
HPB206 100 2030 2030×6 1525×8 200 1550 250 150 330 10 40-5-40 2250x1550x2200 4800
HPB256 125 2540 2540×6 2030×8 250 2050 300 150 350 10 41-6-41 2750x1650x2540 5900
HPB316 160 3100 3100×6 2540×8 250 2550 300 150 350 15 40-6-40 3350x1800x2600 7600
HPB406 200 4000 4000×6 3100×8 250 3550 300 200 350 20 37-5-37 4350x2050x2750 9600
HPB158 100 1525 1525×8 1250×10 200 1050 250 150 330 10 40-5-40 1750x1700x2100 4300
HPB208 125 2030 2030×8 1525×10 250 1550 300 150 350 10 41-6-41 2250x1800x2300 5800
HPB258 160 2540 2540×8 2030×10 250 2050 300 150 350 15 40-6-40 2750x1800x2600 7200
HPB318 200 3100 3100×8 2540×10 250 2550 300 200 400 20 37-5-37 3350x2050x2750 8700
HPB408 250 4000 4000×8 3100×10 250 3550 300 200 400 25 40-5-40 4350x2100x2800 12000
HPB1510 125 1525 1525×10 1250×12 250 1050 300 150 330 10 41-6-41 1750x1850x2600 5100
HPB2010 200 2030 2030×10 1225×12 250 1550 300 200 350 20 37-5-37 2250x1850x2600 6500
HPB2510 200 2540 2540×10 2030×12 300 2050 300 200 400 20 37-5-37 2750x1800x2600 8700
HPB3110 250 3100 3100×10 2540×12 300 2550 300 200 400 25 40-5-40 3350x2100x2800 11500
HPB4010 300 4000 4000×10 3100×12 300 3550 300 250 400 30 36-5-36 4350x2150x2900 14500
HPB2012 200 2030 2030×12 1525×16 300 1550 300 200 400 20 37-5-37 2250x2000x2600 7200
HPB2512 250 2540 2540×12 2030×16 300 2050 300 200 400 25 40-5-40 2750x2000x2700 10500
HPB3112 300 3100 3100×12 2540×16 300 2550 300 200 400 30 36-5-36 3350x2150x2900 12500
HPB4012 400 4000 4000×12 3100×16 300 3550 350 250 500 40 34-5-34 4350x2200x3100 18500
HPB2016 300 2030 2030×16 1525×20 325 1550 350 200 400 30 36-5-36 2250x2150x2700 8000
HPB2516 300 2540 2540×16 2030×20 325 2050 350 200 400 30 36-5-36 2750x2150x2700 11500
HPB3116 400 3100 3100×16 2540×20 325 2550 350 250 500 40 34-5-34 3350x2200x2900 19500
HPB4016 500 4000 4000×16 3100×20 325 3550 350 250 500 50 28-5-28 4350x2300x3100 21500



Standard Accessories:

  • Electric Motor
  • Electrical control panel with selection of ‘AUTO’, ‘INCH’ & ‘SINGLE CYCLE AUTO’ mode operations
  • Movable work station with pair of foot switch
  • Fine stroke adjustment rod with limit switch
  • Manual back gauge with micro setting
  • One suitable five way die & Punch
  • Hydraulic power pack (Without Hydraulic oil)
  • Centralized lubrication system

As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
