Hydraulic Surface Grinder

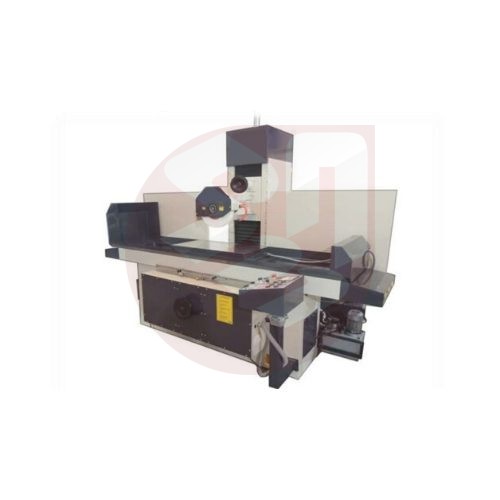

“SHREE” Brand Hydraulic Surface Grinder
Specification	HSG 18-8	HSG 24-8	HSG 20-10	HSG 24-12	HSG 32-16
Table Size	200 × 450 mm	200 × 600 mm	250 × 500 mm	300 × 600 mm	400 × 800 mm
Longitudinal Travel	525 mm	675 mm	525 mm	675 mm	875 mm
Cross Travel	240 mm	240 mm	275 mm	350 mm	450 mm
Spindle Center Height above Table	450 mm	450 mm	450 mm	450 mm	550 mm
Max. Table Speed	18 m/min	18 m/min	18 m/min	18 m/min	18 m/min
Power Cross Traverse	1000 mm/min	1000 mm/min	1000 mm/min	1000 mm/min	1000 mm/min
Vertical Feed Graduation	0.002 mm	0.002 mm	0.002 mm	0.002 mm	0.002 mm
Cross Feed Graduation	0.5 to 10 mm	0.5 to 10 mm	0.5 to 10 mm	0.5 to 10 mm	0.5 to 5 mm
Size of Grinding Wheel (D × W × B)	200 × 20 × 31.75 mm	250 × 25 × 76.2 mm	200 × 20 × 31.75 mm	250 × 25 × 76.2 mm	350 × 50 × 127 mm
Spindle Speed	2800 rpm	2800 rpm	2800 rpm	2800 rpm	1440 rpm
Magnetic Chuck Size	200 × 450 mm	200 × 600 mm	250 × 500 mm	300 × 600 mm	400 × 800 mm
Hydraulic System
Working Pressure	20 kg / cm	20 kg / cm	20 kg / cm	20 kg / cm	20 kg / cm
Hydraulic Motor	2 hp	2 hp	2 hp	2 hp	3 hp
Tank Capacity	75 liters	75 liters	75 liters	75 liters	75 liters
Electricals
Electric Motor (HP / RPM)	2 / 1440	3 / 1440	2 / 1440	3 / 1440	5 / 1440
Machine Dimension (Approx.)
Length x Width	1500 × 1200 mm	1850× 1200 mm	1500 × 1450 mm	1850 × 1450 mm
Height	1600 mm	1600 mm	1600 mm	1600 mm

Standard Accessories

As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
