Internal Grinding Machine

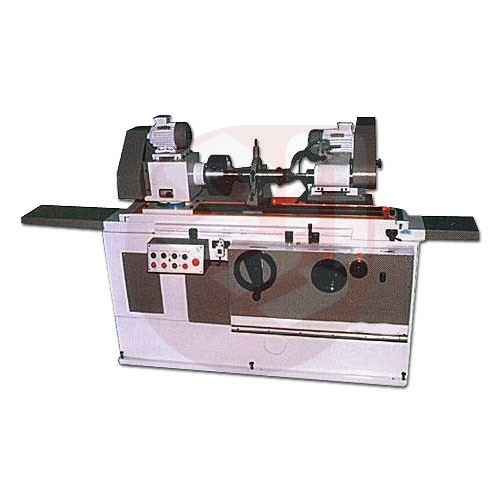

“SHREE” Brand Internal Grinding Machine
Specification	IG150	IG300	IG450	IG500	IG600
Capacity
Distance Between Work Spindle Nose to Grinding Spindle Nose	160 mm	325 mm	475 mm	550 mm	650 mm
Height of Center	102 mm	102 mm	130 mm	150 mm	150 mm
Minimum Bore Diameter	8 mm	8 mm	8 mm	8 mm	8 mm
Maximum Bore Diameter	100 mm	100 mm	100 mm	100 mm	100 mm
Coolant Tank Capacity	35 ltr.	35 ltr.	50 ltr.	50 ltr.	50 ltr.
Work Head
Swivel In Degree	±9	-4 to +10	-3 to +9	-3 to +7	-3 to +7
Speed In Range RPM	90-210-360	90-180-360	90-180-360	90-180-360	90-180-360
Tapper in Quill	MT 3	MT 3	MT 3	MT 4	MT 4
Grinding Wheel Spindle
Spindle Size	60 × 200 mm	60 × 200 mm	60 × 250 mm	60 × 250 mm	60 × 250 mm
Spindle Speed – Standard	12000 rpm	12000 rpm	16000 rpm	16000 rpm	16000 rpm
Table Feed
Table Speed (mm/min.)	140 – 260 – 370 – 700	140 – 260 – 370 – 700	140 – 260 – 370 – 700	140 – 260 – 370 – 700	140 – 260 – 370 – 700
Table Speed Infinitely Variable (Mtr/Min)	0.1 to 2.5	0.1 to 2.5	0.1 to 2.5	0.1 to 2.5	0.1 to 2.5
Electricals
Work Head (HP/RPM)	0.5 / 720& 1440	0.5 / 720 & 1440	0.5 / 720 & 1440	1 / 720 & 1440	1 / 720& 1440
Internal Head (HP/RPM)	1 / 2800	1 / 2800	1 / 2800	1 / 2800	1 / 2800
Hydraulic System (HP/RPM)	1 / 1440	1 / 1440	1 / 1440	1 / 1440	1 / 1440
Coolant Pump(HP/RPM)	0.15 / 2800	0.15 / 2800	0.15 / 2800	0.15 / 2800	0.15 / 2800

Standard Accessories

Optional Accessories

As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
