Mechanical Shearing Machine Under Crank

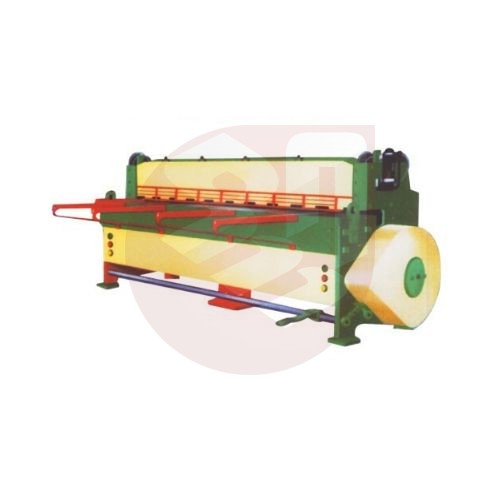

“SHREE” Brand Mechanical Shearing Machine Under Crank
Model	CuttingCapacity In M.S.(Length x Thickness)(mm)	Front Gauge(mm)	Rear Gauge(mm)	Table (H x W)(mm)	Blade ( L x W x T )(mm)	Stroke Per Minute	Hold Down ToKnife Edge	Electric Motor (HP)	Machine Dimension ( L x W x H ) (Approx.)	Weight (Approx.) Kgs.
MSU1	610 x 1.5	450	450	800 x 305	635x62x14	60	5	1	1170x1000x1150	475
MSU2	914 x 1.5	450	450	800 x 305	940x62x14	60	7	1	1470x1000x1150	600
MSU3	1270 x 1.5	450	450	800 x 305	1295x62x14	55	9	2	1900x1100x1220	875
MSU4	1525 x 1.5	450	450	800 x 305	1550x62x14	55	11	2	2200x1100x1220	1000
MSU5	2030 x 1.5	450	450	800 x 315	2050x62x14	50	13	3	2700x1200x1220	1275
MSU6	610 x 2	600	600	800 x 355	635x62x14	60	5	2	1470x1150x1120	860
MSU7	914 x 2	600	600	800 x 355	940x62x14	60	7	2	1770x1150x1220	950
MSU8	1270 x 2	600	600	800 x 355	1295x62x14	50	7	3	2200x1200x1400	1350
MSU9	1525 x 2	600	600	800 x 355	1550x62x14	50	9	3	2450x1200x1400	1500
MSU10	2030 x 2	600	600	800 x 400	2050x62x14	45	11	5	2950x1300x1400	2600
MSU11	2540 x 2	600	600	800 x 400	2550x62x14	45	13	5	3450x1300x1400	2800
MSU12	610 x 4	600	600	825 x 355	635x75x18	50	5	3	1470x1200x1400	1100
MSU13	914 x4	600	600	825 x 355	940x75x18	50	7	3	1770x1200x1400	1320
MSU14	1270 x 4	600	600	825 x 400	1295x75x18	45	7	5	2290x1300x1500	2100
MSU15	1525 x 4	600	600	825 x 400	1550x75x18	45	9	5	2540x1300x1500	2500
MSU16	2030 x 4	600	750	825 x 450	2032x75x18	40	11	7.5	3050x1400x1525	3200
MSU17	2540 x 4	600	750	825 x 450	2550x75x18	40	13	7.5	3550x1400x1525	3600

Standard Accessories:

Optional Accessories:

As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
