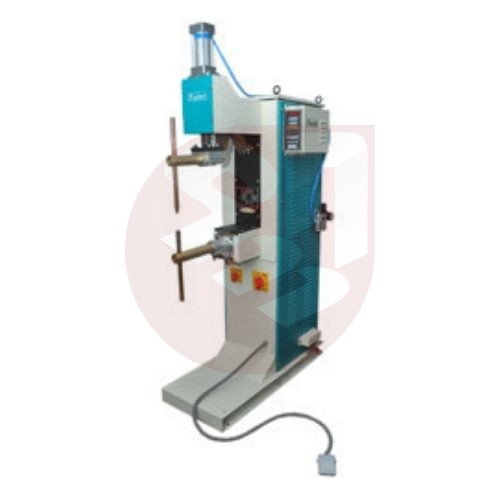

Pneumatic Spot Welding Machine with Micro Controller
| Pneumatic Type | |||||
| Model | Unit | PCSW 15 | PCSW 20 | PCSW 25 | PCSW 30 |
| Rating @50% Duty Cycle | K.V.A. | 15 | 20 | 25 | 30 |
| Input Supply | Volts | 380/440 | 380/440 | 380/440 | 380/440 |
| Phase | 2 | 2 | 2 | 2 | |
| 2 Line Of 3 Phase Supply | |||||
| Insulation Class | A (CU.) | A (CU.) | A (CU.) | A (CU.) | |
| Nominal Throat Clearance | mm | 250 | 250 | 250 | 250 |
| Throat Depth | cm | 50 | 50 | 50 | 50 |
| Max. Available Short Circuit Current | K. Amps | 10 | 12 | 15 | 18 |
| Max. Electrode Force @ 6 kg/cm² | 450 | 450 | 450 | 450 | |
| Max.Upper Electrode Stroke | mm | 50 | 50 | 50 | 50 |
| Colling For Arms & Electrode | Water | Water | Water | Water | Water |
| Colling | Natural Air | ||||
| Approx Dimension | Height | 1620 mm | 1620 mm | 1900 mm | 1900 mm |
| Length | 750 mm | 750 mm | 1040 mm | 1040 mm | |
| Wight | 500 mm | 500 mm | 510 mm | 510 mm | |
| Approx Weight 100% Copper | 225 kg | 255 kg | 290 kg | 320 kg | |
| Approx Weight Semi – Copper | 217 kg | 245 kg | – | – | |
| User Has To Provide The Following Services | |||||
| Size Of Main Supply Copper Cable | MM² | 16 | 20 | 25 | 25 |
| Recommended Switch Rating | Amps | 32 | 40 | 60 | 75 |
| Delayed Action Fuse Rating | Amps | 32 | 32 | 63 | 63 |
| External Water Supply At Max. Temp. 30°c | Lit./Min | 6 | 7 | 7 | 7 |
As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
