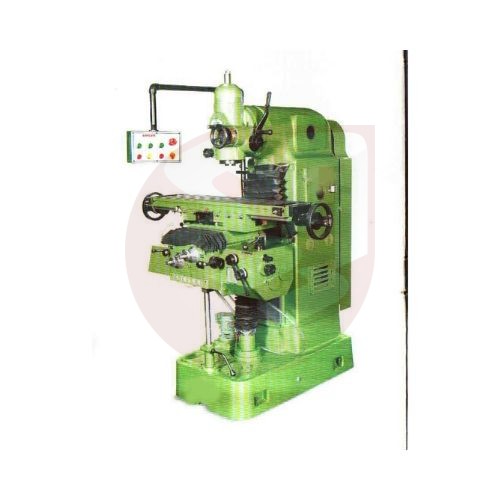

All Geared Vertical Milling Machine
| Specification | AGVM2 | AGVM3 |
| Table | ||
| Working Surface | 1125 × 250 mm | 1400 × 280 mm |
| No. of T – Slot / Size | 3 / 16 mm | 3 / 16 mm |
| Distance Between T – Slot | 63 mm | 63 mm |
| Table Swivelling | ± 45 Degree | ± 45 Degree |
| Movement | ||
| Longitudinal Manual / Feed | 600 mm / 525 mm | 750 mm / 720 mm |
| Cross Manual / Feed | 250 mm / 220 mm | 250 mm / 220 mm |
| Vertical Manual / Feed | 425 mm / 400 mm | 525 mm / 500 mm |
| Quill | 60 mm | 80 mm |
| Spindle | ||
| Spindle Nose Tapper | ISO40 | ISO50 |
| No. of Spindle Speed | 9 | 12 |
| Spindle Speed Range(RPM) | 50 to 812 | 50 to 1000 |
| Head Swivelling to Both Side | ± 45 Degree | ± 45 Degree |
| Spindle Bearing Front (Tapper Roller Bearing) | 32212 | 32214 |
| Spindle Bearing Rear (Tapper Roller Bearing) | 32212 | 32214 |
| Feed | ||
| Number of Feed | 9 | 16 |
| Feed Range – Longitudinal | 16 to 599 mm / min. | 16 to 834 mm / min. |
| – Cross | 24 to 898 mm / min. | 24 to 1251 mm / min. |
| – Vertical | 4 to 148 mm / min. | 4 to 207 mm / min. |
| Electricals | ||
| Electric Motor -Main Spindle (HP / RPM) | 2 / 1440 | 5 / 1440 |
| Electric Motor – Feed (HP / RPM) | 2 / 960 | 3 / 960 |
| Spindle Motor Belt (V – Belt) | B – 48 / Nos. 2 | B – 48 / Nos. 2 |
| Machine Dimension & Weight (Approx.) | ||
| Length x Width | 620 x 1020 mm | 675 x 1150 mm |
| Height | 1525 mm | 2135 mm |
| Weight | 2500 kg | 3300 kg |
Standard Accessories:
- Motor pulley
- Handle
- Limit switch for table
- Main spindle motor
- Feed motor
- Electrical panel board
- Built in coolant tank
- Tool kit
Optional Accessories:
- Universal Dividing head
- Milling vice with swivel base
- Collet Adaptor with Spanner
- Collet set
- Machine lamp
- Coolant pump with Stand, Nozzle & Pipe
As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
