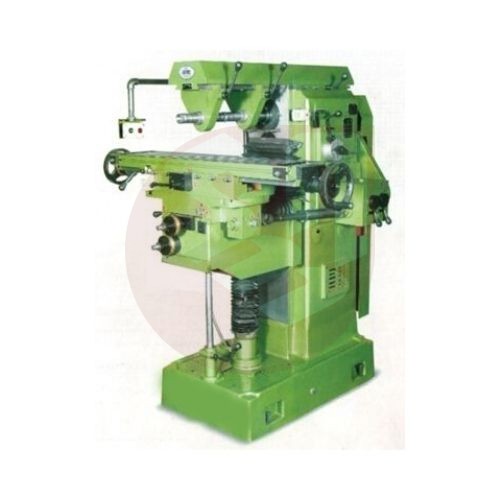

Semi Geared Horizontal Milling Machine (Heavy Model)

“SHREE” Brand Semi Geared Horizontal Milling Machine (Heavy Model)
Specification	SGHM2H	SGHM3
Table
Working Surface	1125 × 250 mm	1400 × 280 mm
No. of T-Slot / Size	3 / 16 mm	3 / 16 mm
Distance Between T-Slot	63 mm	63 mm
Table Swivelling	± 25 Degree	± 45 Degree
Movement
Longitudinal Manual / Auto Feed	600 mm / 525 mm	700 mm / 725 mm
Cross Manual / Auto Feed	250 mm / N.A.	280 mm / N.A.
Vertical Manual / Auto Feed	425 mm / N.A.	525 mm / N.A.
Vertical Movement After Mounting Vertical Attachment	300 mm	380 mm
Spindle
Spindle Arbour	25.4 mm	25.4 mm
Spindle Nose Tapper	ISO40	ISO40
Size of Hole through Spindle	22 mm	22 mm
No. of Spindle Speed	8	12
Spindle Speed Range(RPM)	50 to 800	70 to 1000
Spindle Bearing Front (Tapper Roller Bearing)	32214	32214
Spindle Bearing Rear (Tapper Roller Bearing)	32211	32211
Distance Form Base of Over Arm to Spindle Center	143 mm	165 mm
Feed
Number of Feed	4	4
Feed Range – Longitudinal	0.09 to 0.45 mm / min.	0.05 to 0.25 mm / min.
– Cross	N.A.	N.A.
– Vertical	N.A.	N.A.
Electricals
Electric Motor (HP / RPM)	3 / 1440	5 / 1440
Motor Belt (V – Belt)	B – 62 / Nos. 2	B – 62 / Nos. 2
Machine Dimension & Weight (Approx.)
Length x Width	620 x 1030 mm	700 x 1200 mm
Height	1680 mm	1880 mm
Weight	1600 kg.	2500 kg.

Standard Accessories:

Optional Accessories:

As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
