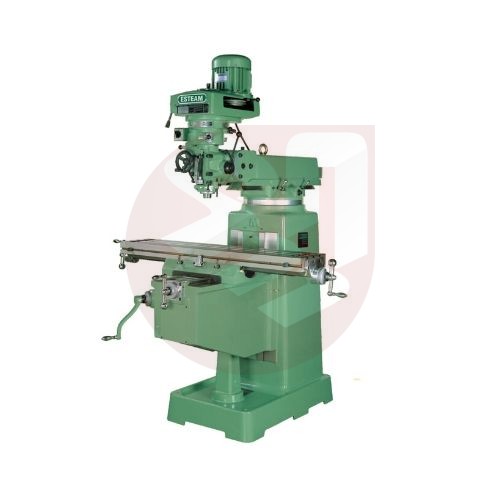

Vertical Turret Milling Machine
| Specification | VTM |
| Table | |
| Table Size | 1270 x 254 mm |
| T – Slot | 3 x 16 x 63 mm |
| Movement | |
| Travel X – Axis | 800 mm |
| Y – Axis | 400 mm |
| Z – Axis | 400 mm |
| Guide Way X – Axis | Triangle |
| Y – Axis | Triangle |
| Z – Axis | Triangle |
| Ram Travel | 480 mm |
| Spindle & Head | |
| Spindle Taper | ISO30 |
| Quill Travel | 127 mm |
| Spindle Nose To Table | 0 – 430 mm |
| Head Tilt | 90° Left & Right, 45° Front & Back |
| Speed Step Number | 16 |
| Spindle Speed | 66 – 4540 rpm |
| Auto Feeds | 0.04, 0.08, 0.15 |
| Electricals | |
| Electric Motor | 3 HP |
Standard Accessories
- 2 – Axis DRO
- Coolant system
- Coolant guard
- Clamping kit : 14 mm
- Collet set (5, 6, 8, 10, 12, 14 mm)
- Collet Adaptor with Spanner : ISO30
- Machine lamp
- Front & Rear rubber chip guard
- Electrical cabinet & control panel
- Two speed electric motor : 3 hp
- Draw bar
- Manual Lubrication system
- Tool box
- Rubber chip guard
- Machine vice : 6”
As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
