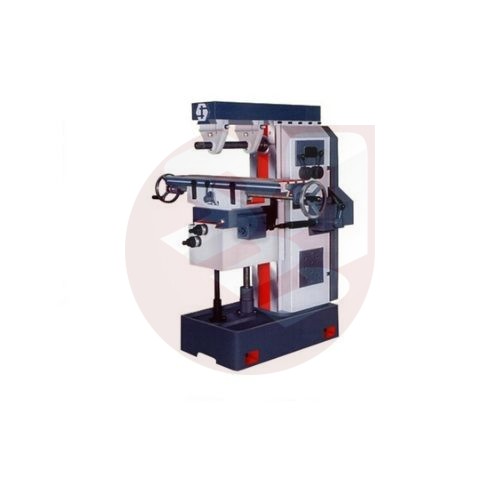

Semi Geared Horizontal Milling Machine (Light Model)
| Specification | SGHM1 | SGHM2L |
| Table | ||
| Working Surface | 750 × 175 mm | 1050 × 250 mm |
| No. of T-Slot / Size | 3 / 15 mm | 3 / 16 mm |
| Distance Between T-Slot | 62 mm | 62 mm |
| Table Swivelling | ± 45 Degree | ± 45 Degree |
| Movement | ||
| Longitudinal Manual / Auto Feed | 375 mm / 365 mm | 600 mm / 590 mm |
| Cross Manual / Auto Feed | 100 mm / N.A. | 230 mm / N.A. |
| Vertical Manual / Auto Feed | 225 mm / N.A. | 450 mm / N.A. |
| Vertical Movement
After Mounting Vertical Attachment |
120 mm | 320 mm |
| Spindle | ||
| Spindle Arbour | 25.4 mm | 25.4 mm |
| Spindle Nose Tapper | ISO30 | ISO40 |
| No. of Spindle Speed | 6 | 6 |
| Spindle Speed Range (RPM) | 65 to 560 | 50 to 525 |
| Spindle Bearing Front (Tapper Roller Bearing) | 32209 | 32212 |
| Spindle Bearing Rear (Tapper Roller Bearing) | 32207 | 32209 |
| Distance Form Base of Over Arm to Spindle Center | 125 mm | 125 mm |
| Feed | ||
| Number of Feed | 12 | 3 |
| Feed Range – Longitudinal | 5 to 90 mm / min. | 0.9 to 2.25 mm / min. |
| – Cross | N.A. | N.A. |
| – Vertical | N.A. | N.A. |
| Electricals | ||
| Electric Motor (HP / RPM) | 1 / 1440 | 2 / 1440 |
| Motor Belt (V – Belt) | B – 51 / Nos. 1 | B – 73 / Nos. 2 |
| Machine Dimension & Weight (Approx.) | ||
| Length x Width | 510 x 735 mm | 550 x 925 mm |
| Height | 1370 mm | 1500 mm |
| Weight | 600 kg. | 1200 kg. |
Standard Accessories:
- 1″ Dia. arbour with Bushes
- Vertical attachment
- Motor pulley
- Handle
Optional Accessories:
- Universal dividing head
- Milling vice with swivel base
- Collet Adaptor with Spanner
- Collet set
- Machine lamp
- Coolant pump with Stand, Tank, Nozzle & Pipe
- Electric motor
- R/F switch with Motor v-belt
As improvements are constantly made in our machines the above specifications and dimensions are subject to modify without any prior notice
